Switcher HDMI Matrix 8 × 8 4K30Hz / 4K60Hz

Categories
Switcher HDMI Matrix 8 × 8 4K30Hz / 4K60Hz
Switcher HDMI Matrix 8 × 8 4K30Hz / 4K60Hz - Image 2

Sku

Switcher HDMI Matrix 8 × 8 4K30Hz / 4K60Hz

The matrix can also be controlled through RS-232, IP interface. With the smart management of EDID, make it compatible with most HDMI source and receiver devices.

  • Max. Resolution up to 3840*2160 @ 30Hz.
  • Each HDMI output can share the same input or be independent.
  • Supports PCM, Dolby AC3, DTS5.1, DTS7.1 and DSD audio format.
  • Smart EDID management.
  • The condition of the matrix can be memorized after the switch off.
  • Easy control matrix using IR receptor.
  • Easy to see the status of real-time inputs and outputs.
  • It supports 8 preestablished connections by the user.
  • Supports unique DVI-D connection sources and screens with the use of HDMI to DVI adapters
  • Compatible with HDCP1.4.

HDMI 8 × 8 4K30Hz / 4K60Hz compatible with RS232 / LAN control

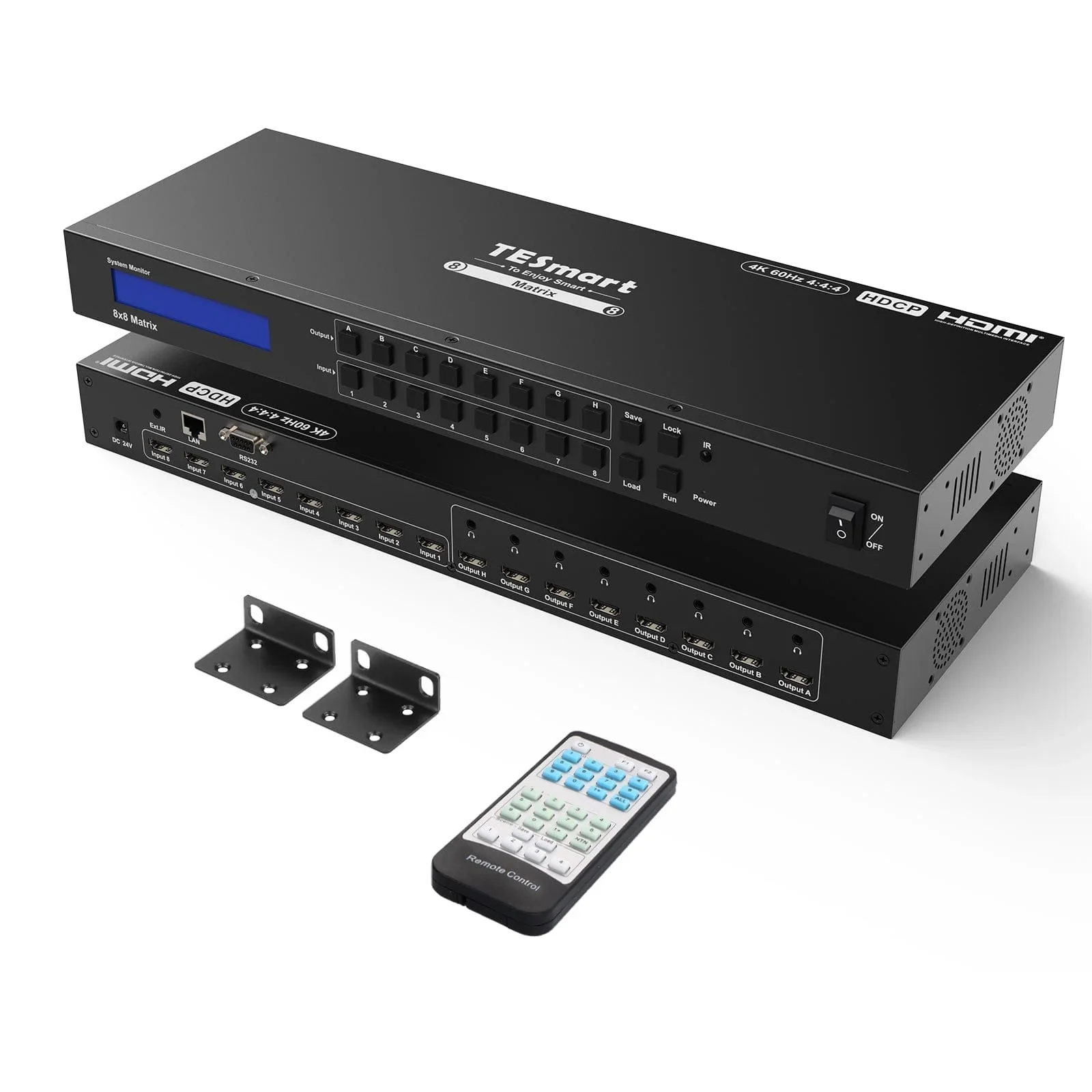

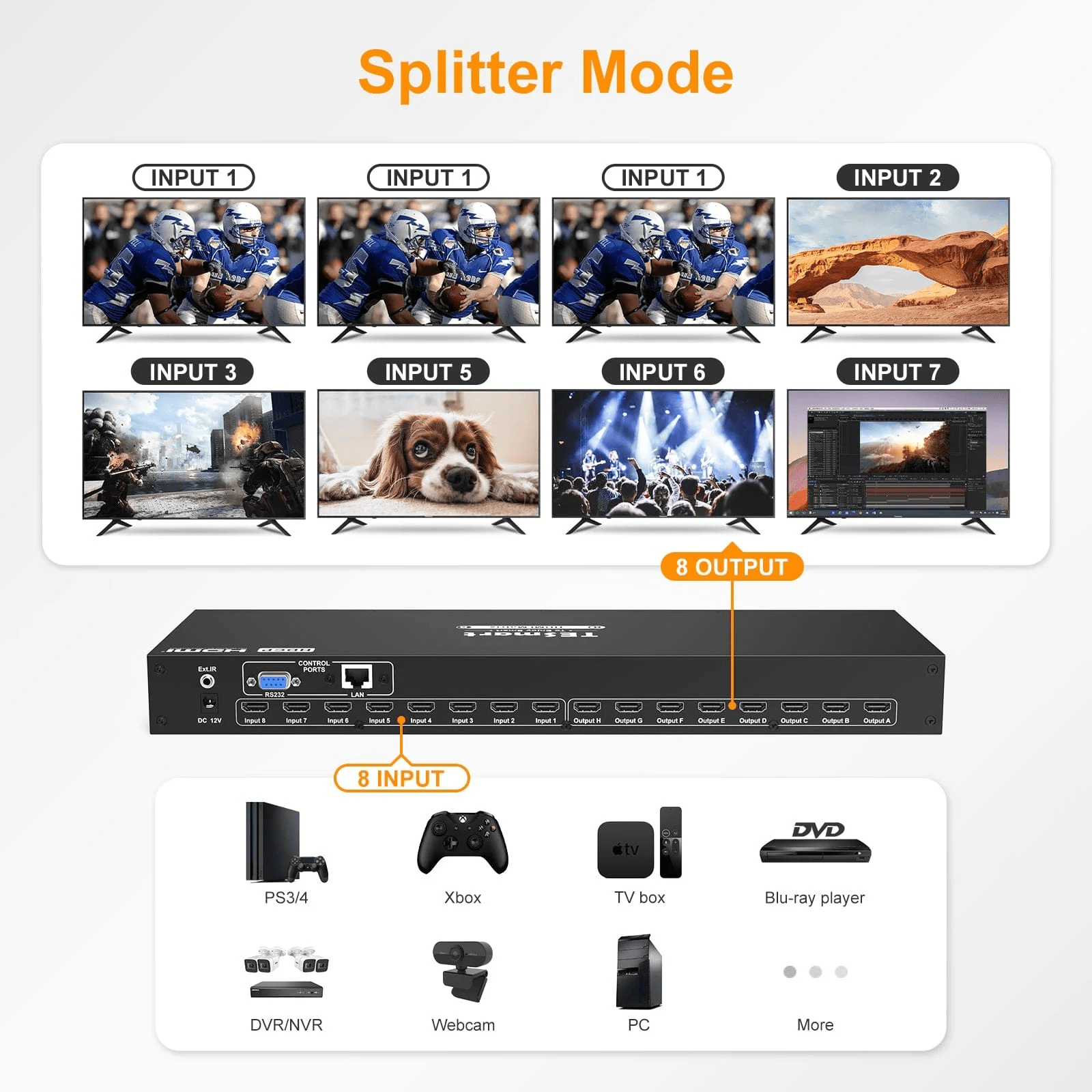

This 8 × 8 HDMI matrix links 8 Ultra HD sources to eight 4K Ultra HD screens with HDMI inputs. Each source can be routed to any screen, using the front panel buttons or the remote infrared control.

An HDMI 8 × 8 matrix compatible with 4K30Hz and 4K60Hz and with RS232 / LAN control is a device for routing video and audio signals from up to 8 sources to 8 destinations, providing support for 4K resolutions and technologies such as HDCP.  This type of matrix is especially useful in environments where multiple input and output devices are required, such as video conference systems, control rooms or professional display facilities.

For example, the TESmart HDMI Matrix 8 × 8 4K Matrix Switcher supports 4K at 30Hz, 1080P 3D, HDCP and features remote control options IR, RS232 and TCP / IP control. On the other hand, the J-Tech Digital 4k 2 × 2 4K60Hz HDMI Video Wall Controller MultiViewer Switch Matrix supports 4K60Hz and 4K30Hz inputs, and supports HDMI, HDCP, RS-232, LAN, Downscale and Upscall.
